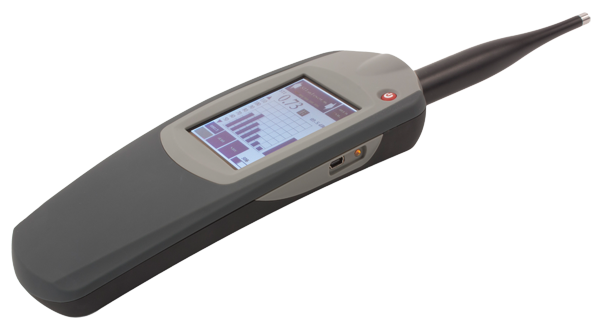

Bedrock SM50 STIPA
Class 2 STIPA Analyzer for Professional Testing
Practical Class 2 STIPA analyzer for voice alarm verification and PAGA system commissioning. STIPA, full STI and STIPA pro mode with MTF values. Pair with the BTB115 Advanced Talkbox for a complete STIPA kit.
About this product
The Bedrock SM50 is the practical entry point for professional STIPA testing. When project requirements call for reliable results without Class 1 overhead, the SM50 delivers IEC-60268-16 compliant STIPA and full STI measurements (rev. 4 and rev. 5). Designed and manufactured in the Netherlands, by the inventors of STIPA.
Practical STIPA Testing Solution
Not every project requires Class 1 precision. The SM50 + BTB115 combination provides a complete STIPA testing kit for contractors, installers, and organizations needing reliable voice alarm verification.
Complete Kit: SM50 + BTB115
Pair the SM50 with our BTB115 Advanced Talkbox for a complete STIPA testing solution: - SM50 STIPA analyzer for measurements - BTB115 Advanced Talkbox for test signal generation - Both IEC-60268-16 compliant - Free firmware updates add functionality
Turnkey Operation
The same plug-and-play simplicity as our Elite meters. Point, measure, document. No complex procedures, no training required. Perfect for installers and contractors.
When to Choose SM50 vs. Class 1

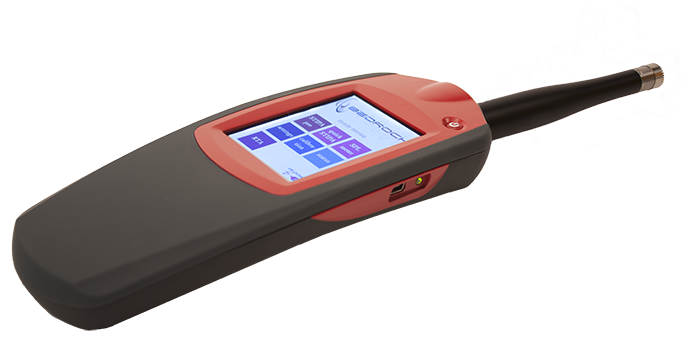

The SM50 is ideal for routine commissioning, periodic verification, and compliance work where Class 2 accuracy meets requirements. For critical installations or formal certification, consider the i9 or SM90 for Class 1 precision.
Specifications
| Standards Compliance | IEC 61672-1:2014 Group X Class 2, ANSI S1.4 Type 2, IEC 60268-16 rev. 4 (2011) and rev. 5 (2020), IEC 61260:2014 (RTA filters exceed class 1), ISO 3382-2, ANSI S12.2, ISO 1996 |
| Speech Intelligibility | STIPA and Full STI (IEC 60268-16 rev. 4 and rev. 5); STIPA pro mode with MTF values |
| Speech Level Meter | IEC 60268-16 |
| STI Range | 0.00 - 1.00 (resolution 0.01) |
| Microphone | BAMT2, 48 V phantom powered, 1/4" omnidirectional free-field, Class 2 / Type 2, 30 mV/Pa; works with any 48 V XLR measuring microphone; line-level input possible |
| Effective Noise Floor | < 30 dB(A) (Class 2 device) |
| Linear Range (Z-weighted) | 31-121 dB SPL (low range); 47-123 dB SPL (reference/high range) |
| Linear Measuring Range | 30 - 122 dB with the included microphone; electronics > 110 dB (combined ranges) |
| Platform | Shared SMxx hardware platform (SM50, SM90); designed and manufactured in the Netherlands, by the inventors of STIPA |
| Sound Pressure Level | A, C, Z weighting; Slow, Fast, Impulse; Leq, SEL, peak |
| Statistical Acoustics | Percentile levels (L10, L90 and others) |
| Octave Analysis | Real-time analyzer - 1/1, 1/3, 1/6 and 1/12 octave, filters exceed class 1 (IEC 61260:2014), base 10 |
| Logging | LAEQ long-term monitoring and RTA logging |
| FFT Analyzer | FFT analyzer for acoustic and electric input signals |
| Reverberation Time | RT60 (ISO 3382-2) - impulse-response and interrupted-noise methods |
| Noise Curves | NR, NC, PNC, NCB, RC and RC Mark II |
| Building Acoustics | Sound insulation Dn / R' and DnT; SRI / STC; impact sound insulation L'nT and L'nw / L'nTw (firmware 3.2) |
| Electro-Acoustics | Oscilloscope, loudspeaker polarity test, electric RTA and FFT |
| Electric Analysis | AC voltmeter (Vrms, dBU, dBV), fundamental frequency estimation, THD+N |
| Audio Recording | Calibrated audio recording |
| THD+N Measurement | Supported |
| Maximum Permissible SPL | 155 dB (maximum electric input 30 Vpp) |
| Upper Limit Peak Range | 124 dB (highest range, 20 Hz - 20 kHz) |
| Display | 3.2" resistive LCD touch screen, full colour, 320 x 240 pixels, 65k colours, luminance typ. 250 Cd/m2 |
| Data Storage | 4 GB internal storage (at least 3.8 GB for data); accessible from a PC over USB (mass storage mode) |
| Connectivity | USB - data download, remote control, USB audio device mode; remote-control API available for third-party applications |
| Battery | NiMH pack, 4.8 V nominal, typ. 2500 mAh; approx. 4 to 6 hours on a single charge, depending on use; recharging via USB wall charger (international adapters included); max. charge current 1.8 A |
| Start-Up Period | Ready for measurements 20 seconds after power-up |
| Operating Conditions | Temperature 5 - 35 °C (41 - 95 °F); relative humidity 0 - 95% non-condensing |
| EMC | EN 61326-1:2006; FCC part 15 class A |
| Mechanical | Rear-mounted tripod adapter; hook for carrying cord |
| Dimensions | Approx. 210 x 85 x 55 mm (excluding microphone) |
| Weight | 530 g (including microphone) |
| Firmware | Free firmware updates add functionality |
Applications
Explore detailed guides for each application area
Practical speech intelligibility testing guide
Voice alarm system verification procedures
PAGA system commissioning and intelligibility testing
What's Included
Complete kit includes: Rugged hardcase, windscreen, universal power adapter (international plugs), USB cable, calibration certificate, lanyard, a plethora of Excel calculation and reporting sheets, plus Bedrock Studio software. ISO17025 accredited calibration available as an option.
From measurement to report — Bedrock Elite Analyzer
Turn your SM50 STIPA measurements into standards-anchored results and branded reports, on your Windows desktop.
- No serial needed to start — run every module in demo mode.
- Branded, standards-referenced PDF reports.
- No add-ons, no per-module fees.
